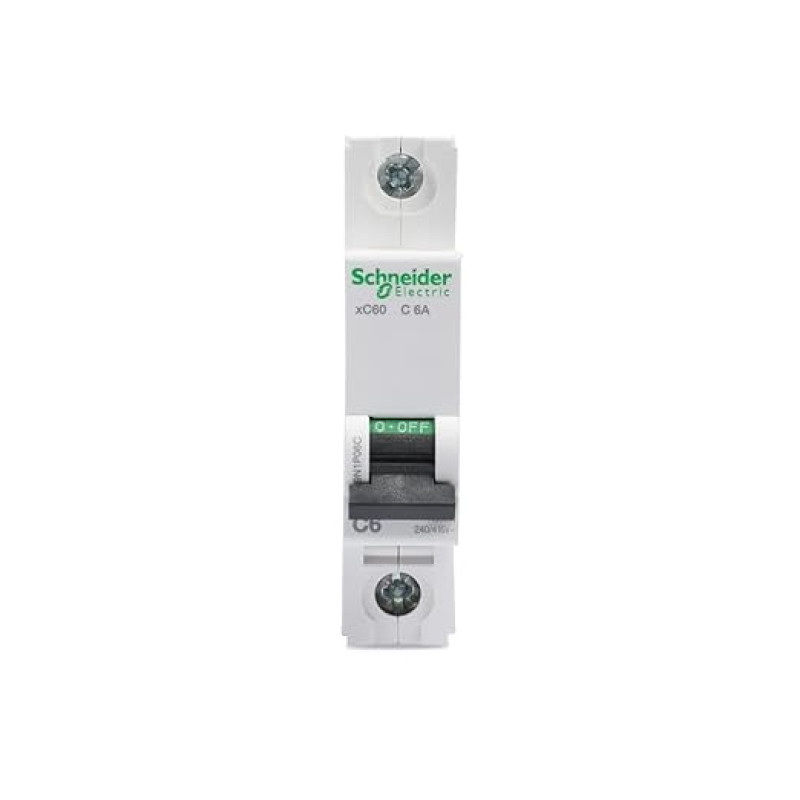

Schneider C Curve MCBs - xC60 - 1 Pole - 6A (A9N1P06C)

₹ 208 - 50% Off ₹ 415

Inclusive of all taxes

Product will be delivered within 3 - 5 .days.

Schneider Product code: (A9N1P06C) The Acti9 xC60 is a single-pole miniature circuit breaker (MCB) with a multistandard low voltage biconnect design, featuring a 6A In rated current and C tripping curve. Compliant with EN/IEC 60947-2, EN/IEC 60898-1, and EN/IEC 60947-2 standards for industrial and residential use, this Single Pole MCB safeguards circuits against short circuit and overload currents. The green strip ensures physical contact opening, allowing secure downstream circuit operations. With a mechanical durability of 20000 cycles, electrical durability of 20000 cycles, and operational voltage of 220-240VAC, it offers reliability and safety. Suitable for DIN rail mounting, it has a width of 2 pitches (18mm) and meets IP20 and IP40 protection standards. Operating temperature ranges from -30°C to 70°C, with a storage range of -40°C to 85°C, making it an optimal solution for Single Pole MCB applications.

Color:

Brand: SCHNEIDER
Category: Switchgears (MCB's, RCCB's, DBs etc)
Sub Category: SCHNEIDER

Product Code: 35
Product Tags: new product, top product,

Description
Return Policy

Main
Device application	Distribution
Range of product	Acti9
Range	Acti9
Product name	XC60
product or component type	Miniature circuit-breaker
Device short name	xC60
Poles description	1P
Number of protected poles	1
[In] rated current	6 A
Network type	AC DC
Trip unit technology	Thermal-magnetic
Curve code	C
Utilisation category	Category A conforming to EN/IEC 60947-2
Suitability for isolation	Yes conforming to EN/IEC 60947-2

Complementary
Network frequency	50/60 Hz
[Ue] rated operational voltage	220...240 V AC 50/60 Hz 12...48 V DC 60 V DC
Magnetic tripping limit	8 x In +/- 20 %
Breaking capacity	10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1 15 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 12...48 V DC conforming to EN/IEC 60947-2 6 kA Icu at 60 V DC conforming to EN/IEC 60947-2
[Ics] rated service breaking capacity	15 kA conforming to EN/IEC 60947-2 - 12...48 V DC 6 kA conforming to EN/IEC 60947-2 - 60 V DC
Limitation class	3 conforming to EN/IEC 60898-1 3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Contact position indicator	Yes
Control type	Toggle
Local signalling	ON/OFF indication
Mounting mode	Clip-on
Mounting support	35 mm DIN rail
Comb busbar and distribution block compatibility	Top: YES
9 mm pitches	2
Height	85 mm
Width	18 mm
Depth	77.5 mm
net weight	0.115 kg
Colour	White
Mechanical durability	20000 cycles
Electrical durability	20000 cycles
Connections - terminals	Tunnel type terminals (bottom) 16 mm² flexible Tunnel type terminals (bottom) 25 mm² rigid Biconnect (top)
Wire stripping length	13 mm for top or bottom connection
Tightening torque	2 N.m
earth-leakage protection	Separate block
Product compatibility	C60 accessories C60 auxiliary

Environment
Standards	EN/IEC 60947-2 EN/IEC 60898-1
IP degree of protection	IP20 conforming to IEC 60529
Pollution degree	3
Tropicalisation	2 conforming to IEC 60068-1
Overvoltage category	IV
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-30…70 °C
ambient air temperature for storage	-40…85 °C
