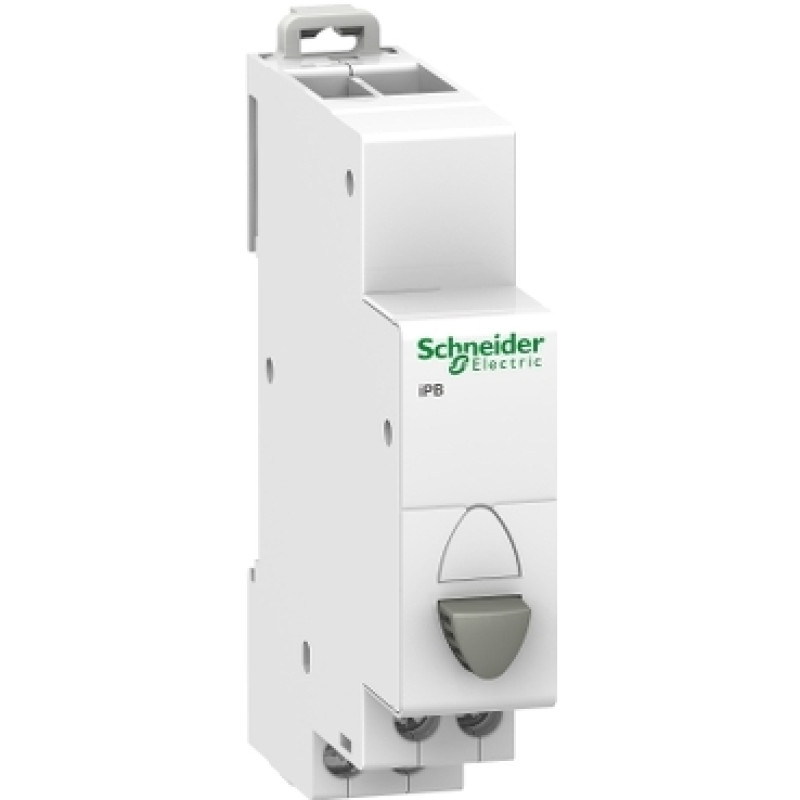

Schneider Acti9 iPB - (1NO-1NC)- single push button grey - (A9E18033)

₹ 1290 - 50% Off ₹ 2579

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Acti9 iPB product is a modular pubutton used to control electric circuits. It has normaly open and normally close contacts (1 NO + 1NC). The push-button is grey. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m.

Color:

Brand: SCHNEIDER
Category: Switchgears (MCB's, RCCB's, DBs etc)
Sub Category: SCHNEIDER

Product Code: 299

Description
Return Policy

Main
range of product	Acti9
Product name	Acti9 iPB
product or component type	Push-button
Device short name	iPB
Standards	IEC 60669-1 IEC 60947-5-1

Complementary
Contacts type and composition	1 NO + 1 NC
[Ie] rated operational current	20 A
[Ue] rated operational voltage	250 V AC
Control type	1 push-button grey
mounting mode	Fixed
mounting support	35 mm symmetrical DIN rail
Comb busbar and distribution block compatibility	Upside: Clario Upside: Librio Upside: ProDis
9 mm pitches	2
Height	82 mm
Width	18 mm
Depth	71.5 mm
Colour	White
Electrical durability	AC-22: 30000 cycles AC 50/60 Hz
Connections - terminals	Staggered tunnel terminal1 cable(s) 0.5 mm² rigid Staggered tunnel terminal1 cable(s) 0.5 mm² flexible Staggered tunnel terminal1 cable(s) 0.5 mm² flexible with ferrule Staggered tunnel terminal2 cable(s) 2.5 mm² rigid Staggered tunnel terminal2 cable(s) 2.5 mm² flexible Staggered tunnel terminal2 cable(s) 2.5 mm² flexible with ferrule
Wire stripping length	9 mm
Tightening torque	1 N.m

Environment
Tropicalisation	2
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-35…70 °C
ambient air temperature for storage	-40…80 °C
