In Stock

Schneider communication Auxiliaries - Distribution from the top (4 Module) - 63A - (04040)

₹ 7786 - 50% Off ₹ 15571

Inclusive of all taxes

Product will be deliver within 3-4 days.

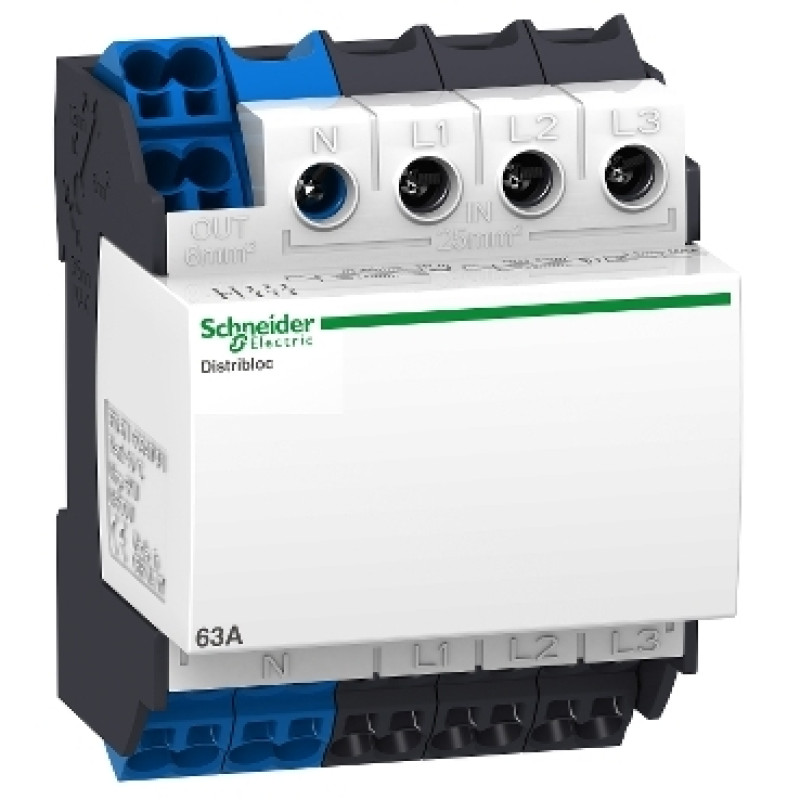

This Linergy DX distribution block can be installed on a DIN rail. It is compatible with Prisma, Pragma enclosures ans Spacial enclosures. It is dedicated to 4P installation. It provides tunnel type terminal for the supply circuit with a cable cross section of 16mm² for flexible cables or 25mm² for rigid cables. It provides 24 holes for quick connections at the top of the product. 12 spring terminal outgoers for phase and 12 spring terminal outgoers for neutral are available for distribution part. The allowed cable cross section is comprised betrween 2.5mm² and 6mm² for flexible and rigid cables. The Ue rated operational voltage is 440VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The In rated operational current is 63A. It provides IPxx B degree of protection. Its resistance to incandescent wire is 960°C. It is intented for residential or small commercial buildings. Its width takes 4 modules of 18mm. Its weight is 290g. It complies with IEC60947-7-1 and IEC61439-1 standards.

Color:

Brand: SCHNEIDER
Category: Switchgears (MCB's, RCCB's, DBs etc)
Sub Category: SCHNEIDER

Product Code: 303

Description
Return Policy

Main
Range	Linergy
Range of product	Prisma Plus System P Prisma Plus System G
product or component type	Distribution block
Product name	Linergy DX
Range compatibility	Prisma Prisma G Prisma Prisma P Prisma Prisma PH Prisma Pack 160 Prisma Prisma Pack 250
Product compatibility	Spacial enclosures
IP degree of protection	IPxx B

Complementary
Location of connection	Top
mounting support	DIN rail
poles description	4P
[Ue] rated operational voltage	440 V AC
[Ui] rated insulation voltage	500 V AC
[Uimp] rated impulse withstand voltage	6 kV
[Ie] rated operational current	63 A at 40 °C
[In] rated current	63 A at 40 °C
Connections - terminals	Supply: tunnel type terminal16 mm² (flexible) Supply: tunnel type terminal25 mm² (rigid) Distribution: spring terminal (phase) , 12 x 2.5…6 mm² (flexible) Distribution: spring terminal (phase) , 12 x 2.5…6 mm² (rigid) Distribution: spring terminal (neutral) , 12 x 2.5…6 mm² (flexible) Distribution: spring terminal (neutral) , 12 x 2.5…6 mm² (rigid)
9 mm pitches	8
Total number of 18 mm modules	4
net weight	0.29 kg

Environment
Pollution degree	3
Resistance to incandescent wire	960 °C conforming to IEC 60695-2-11
Standards	IEC 60947-7-1 IEC 61439-2 IEC 61439-1
Product certifications	ASEFA
