Schneider Acti9 - SPN DBs -Double Door Metal (IP43) - 8 ways - (A9HSND08)

₹ 1600 - 50% Off ₹ 3199

Inclusive of all taxes

Product will be deliver within 3-4 days.

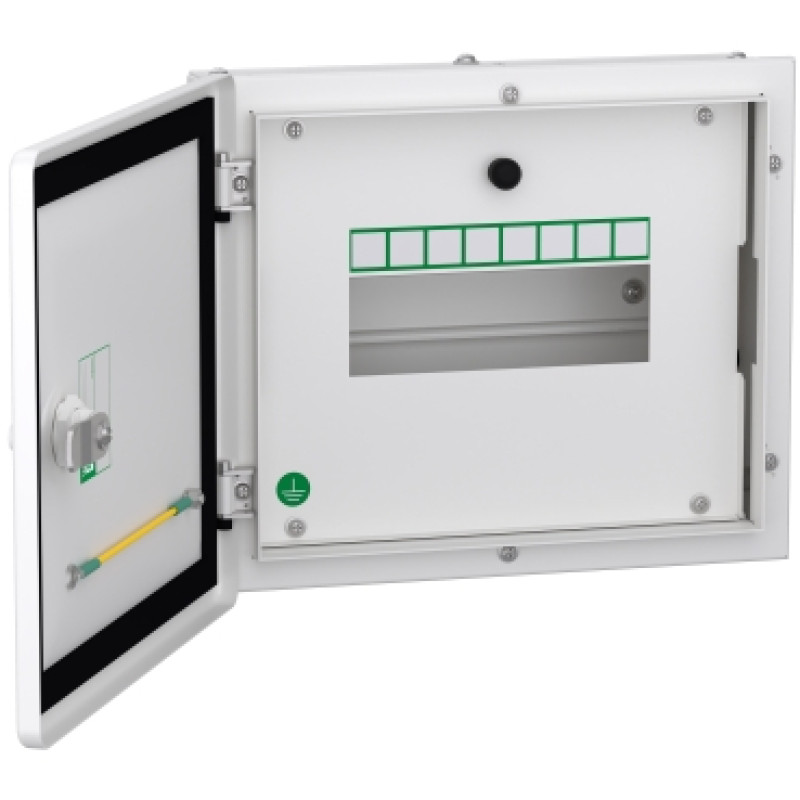

This Acti9 distribution board comes with reversible double metal door for door opening. This distribution board gives total flexibility to mount any type and size of modular devices as per load requirement. It allows the mounting of modular devices on 8 modules of 18mm. The number of ways is 8. The dimensions are (W) 282mm x (H) 242mm x (D) 95.4mm. The color of the distribution board is white (RAL 9003). The degree of protection is IP43, IK09 with the double metal door. This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.

Color:

Brand: SCHNEIDER
Category: Switchgears (MCB's, RCCB's, DBs etc)
Sub Category: SCHNEIDER

Product Code: 332

Description
Return Policy

Main
Range	Acti9
Product name	SPN
product or component type	Consumer unit
Device application	Distribution
Colour	White (RAL 9003)
Provided equipment	Removable gland plates Removable centre plates Removable frame Grounding bar Neutral bar Busbar Neutral cable

Complementary
enclosure mounting	Surface Flush
Protection device type	Outgoer: miniature circuit breaker (MCB) - 1P Main incomer: isolator - 2P Main incomer: miniature circuit breaker (MCB) - 2P Main incomer: residual current circuit breaker (RCCB) - 2P Main incomer: residual current circuit breaker with overcurrent protection (RCBO) - 2P
Total number of 18 mm modules	8
Number of ways	8 ways
Enclosure/cubicle description	Double door enclosure
Enclosure material	Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA door CRCA central plate CRCA frame
Door opening side	Reversible
Height	242 mm external:
Width	282 mm external:
Depth	95.4 mm external:

Environment
IP degree of protection	IP43
IK degree of protection	IK09
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	ERDA CPRI
