In Stock

Schneider Acti9 - TPN DBs -Double Door Metal (IP43) - 8 way - 8+24 module - (A9HTND08)

₹ 4833 - 50% Off ₹ 9665

Inclusive of all taxes

Product will be deliver within 3-4 days.

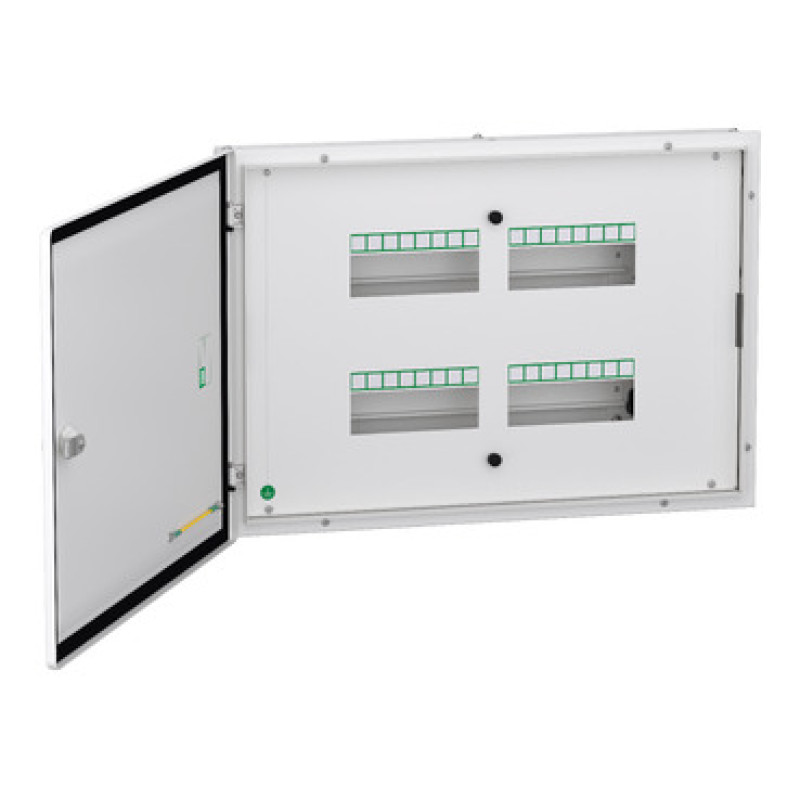

This Acti9 distribution board comes with reversible double metal door for door opening. This distribution board gives total flexibility to mount an type and size of modular devices as per load requirement. It allows the mounting of modular devices on 32 modules of 18 mm. The number of ways is 8. The dimensions are (W) 604mm x (H) 422mm x (D) 101.4mm. The color of the distribution board is white (RAL 9003). The degree of protection is IP43, IK09 with the double metal door. This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.

Color:

Brand: SCHNEIDER
Category: Switchgears (MCB's, RCCB's, DBs etc)
Sub Category: SCHNEIDER

Product Code: 338

Description
Return Policy

Main
Range	Acti9
Product name	TPN
product or component type	Consumer unit
Device application	Distribution
Colour	White (RAL 9003)
Provided equipment	Removable gland plates Removable centre plates Removable frame Grounding bar Neutral bar Busbar Cable kit

Complementary
enclosure mounting	Flush Surface
Protection device type	Main incomer: isolator - 4P Main incomer: miniature circuit breaker (MCB) - 4P Outgoer: miniature circuit breaker (MCB) - 1P Main incomer: residual current circuit breaker (RCCB) - 4P Main incomer: residual current circuit breaker with overcurrent protection (RCBO) - 4P
Total number of 18 mm modules	32
Number of ways	8 ways
Enclosure/cubicle description	Double door enclosure
Enclosure material	Galvanized steel box Galvanized steel chassis Galvanized steel cable gland plate Galvanized steel DIN rail CRCA door CRCA central plate CRCA frame
Door opening side	Reversible
Height	422 mm external:
Width	604 mm external:
Depth	101.4 mm external:

Environment
IP degree of protection	IP43
IK degree of protection	IK09
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	CPRI ERDA
