In Stock

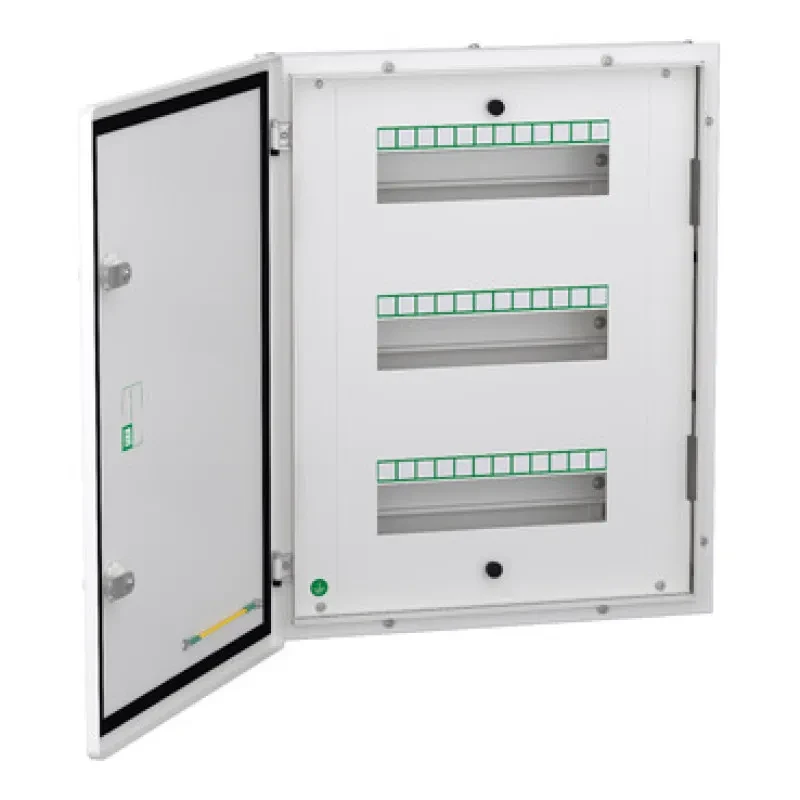

Schneider Acti9 - Flexi Tier DBs -Double Door Metal (IP43) - 3 Tier 36 Modules - (3*12) - ( A9HFD336)

₹ 4971 - 50% Off ₹ 9941

Inclusive of all taxes

Product will be deliver within 3-4 days.

Product Type: Consumer unit (distribution board) Enclosure Type: Double door metal enclosure Number of Rows: 3 Modules per Row: 12 (18 mm modules) Total Modules: 36 Dimensions: Height: 530.6 mm Width: 421 mm Depth: 101.6 mm Protection Ratings: IP Degree: IP43 IK Degree: IK09 Standards and Certifications: IS 8623-1, IS 8623-3, IEC 61439-3 CPRI, ERDA

Color:

Brand: SCHNEIDER
Category: Switchgears (MCB's, RCCB's, DBs etc)
Sub Category: SCHNEIDER

Product Code: 341
Product Tags: new product, top product,

Description
Return Policy

Main
Range	Acti9
Product name	Flexi Tier
product or component type	Consumer unit
Device application	Distribution
Colour	White (RAL 9003)
Provided equipment	Removable gland plates Removable centre plates Removable frame Grounding bar Neutral bar

Complementary
enclosure mounting	Flush Surface
Number of horizontal rows	3
Number of 18 mm modules per row	12
Total number of 18 mm modules	36
Enclosure/cubicle description	Double door enclosure
Enclosure material	Galvanized steel box Galvanized steel chassis Galvanized steel cable gland plate Galvanized steel DIN rail CRCA door CRCA central plate CRCA frame
Door opening side	Reversible
Height	530.6 mm external:
Width	421 mm external:
Depth	101.6 mm external:

Environment
IP degree of protection	IP43
IK degree of protection	IK09
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	CPRI ERDA
