| Range | Acti9 |
|---|---|
| Product name | TPN PPI |

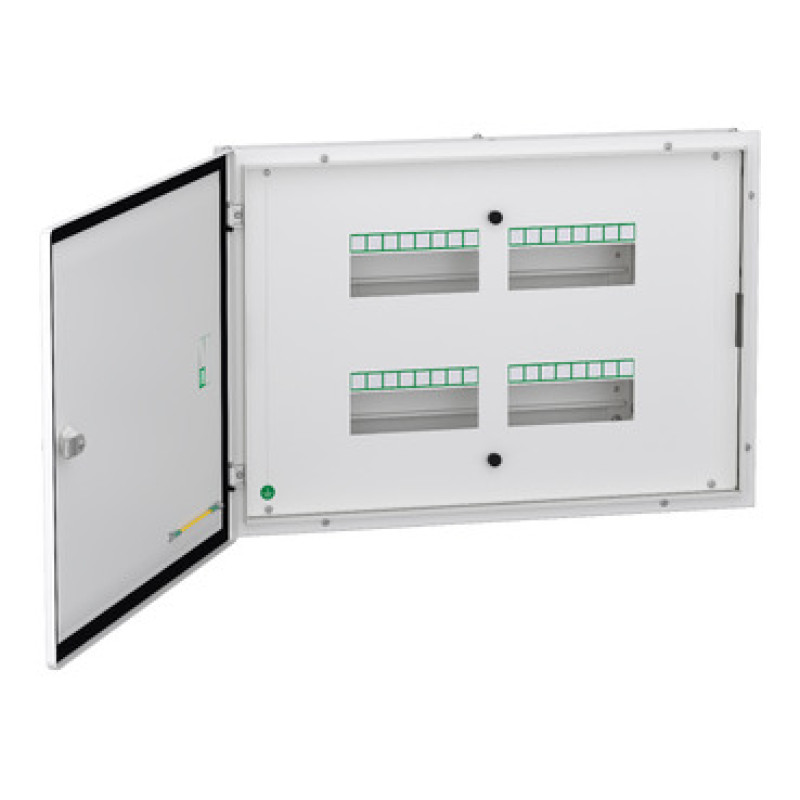

| product or component type | Consumer unit |
| Device application | Distribution |
| Colour | White (RAL 9003) |
| Provided equipment | Removable gland plates Removable centre plates Removable frame Grounding bar Neutral bar Busbar Wire set |
| enclosure mounting | Flush Surface |
|---|---|
| Protection device type | Main incomer: isolator - 4P Main incomer: miniature circuit breaker (MCB) - 4P Outgoer: miniature circuit breaker (MCB) - 1P Main incomer: residual current circuit breaker (RCCB) - 4P Main incomer: residual current circuit breaker with overcurrent protection (RCBO) - 4P |
| Total number of 18 mm modules | 32 |
| Number of ways | 8 ways |
| Enclosure/cubicle description | Double door enclosure |
| Enclosure material | Galvanized steel box Galvanized steel chassis Galvanized steel cable gland plate Galvanized steel DIN rail CRCA door CRCA central plate CRCA frame |
| Door opening side | Reversible |
| Height | 422 mm external: |
| Width | 604 mm external: |
| Depth | 101.4 mm external: |
| IP degree of protection | IP43 |
|---|---|
| IK degree of protection | IK09 |
| Standards | IS 8623-1 IS 8623-3 IEC 61439-3 |
| Product certifications | NABL |
