In Stock

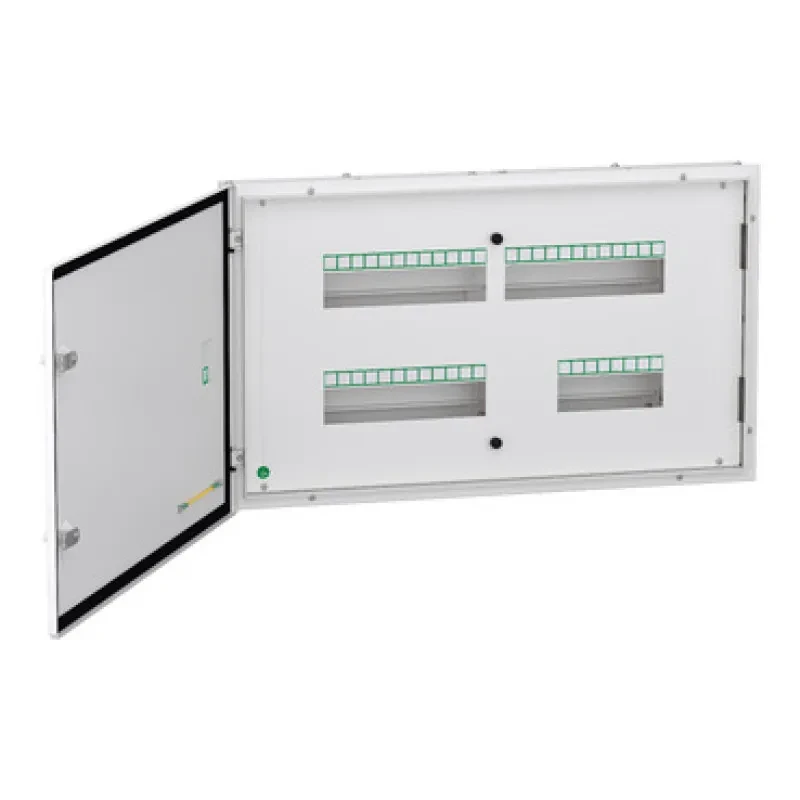

Schneider Acti9 PPN TPN DB - TPN PPI DB (Per Phase Isolation DBs) - (IP43) - (8+23+103) - Double Door - 12 ways - (A9HTPI12)

₹ 8134 - 50% Off ₹ 16267

Inclusive of all taxes

Product will be deliver within 3-4 days.

Configuration: 12 ways Mounting: Metal double door IP Rating: IP43 (protection against solid objects and water splashes) Module Size: 44 modules

Color:

About this item

Range: Acti9
Product name: TPN PPI
product or component type: Consumer unit
Device application: Distribution
Color White (RAL 9003)
Provided equipment: Removable gland plates Removable center plates Removable frame
Grounding bar: Neutral bar
Busbar: Wire set
enclosure mounting: Surface Flush
Main incomer: isolator - 4P
Main incomer: miniature circuit breaker (MCB) - 4P
Outgoer: miniature circuit breaker (MCB) - 1P
Main incomer: residual current circuit breaker (RCCB) - 4P
Main incomer: residual current circuit breaker with overcurrent protection (RCBO) - 4P
Total number of: 18 mm modules: 44
Number of ways: 12 ways
Enclosure/cubicle description: Double door enclosure
Enclosure material: Galvanized steel box Galvanized steel chassis Galvanized steel cable gland plate Galvanized steel DIN rail
CRCA frame
Door opening side: Reversible
Height: 422 mm external:
Width: 716 mm external:
Depth: 101.4 mm external
IP degree of protection: IP43
IK degree of protection: IK09
Standards:
IS 8623-1IS 8623-3IEC 61439-3
Product certifications: ERDACPRI
