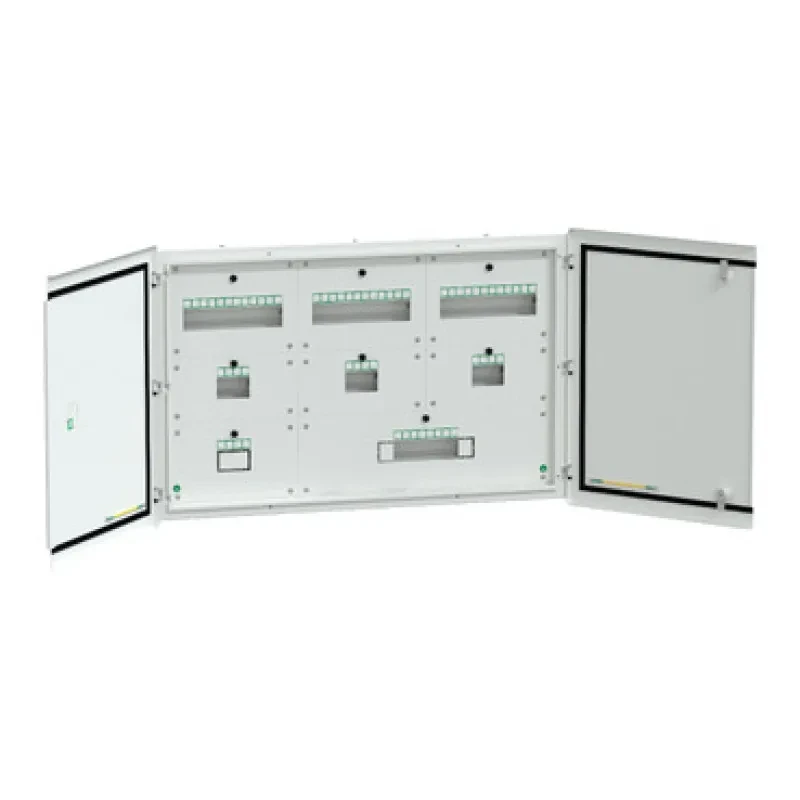

| Range | Acti9 |
|---|---|
| Product name | Phase Segregated |
| product or component type | Distribution board |
| Device application | Distribution |
| Enclosure type | Compartmentalised |
| Colour | White (RAL 9003) |
| Provided equipment | Removable gland plates Removable centre plates Removable frame Grounding bar Neutral bar Busbar Cable Rotary lock |
| enclosure mounting | Surface Flush |
|---|---|
| Protection device type | Main incomer: isolator - 4P Main incomer: miniature circuit breaker (MCB) - 4P Sub feeder: residual current circuit breaker (RCCB) - 2P (phase) Sub feeder: residual current circuit breaker with overcurrent protection (RCBO) - 2P (phase) Outgoer: miniature circuit breaker (MCB) - 1P |
| [In] rated current | 63 A |
| Total number of 18 mm modules | 46 |
| Number of ways | 6 ways |
| Enclosure/cubicle description | Split door enclosure |
| Enclosure material | Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA door CRCA central plate CRCA frame |
| Door opening side | Reversible |
| Height | 607.2 mm external: |
| Width | 926 mm external: |
| Depth | 98.6 mm external: |
| net weight | 23.39 kg |
| IP degree of protection | IP43 |
|---|---|
| IK degree of protection | IK09 |
| Standards | IS 8623-1 IS 8623-3 IEC 61439-3 |
| Product certifications | NABL |
