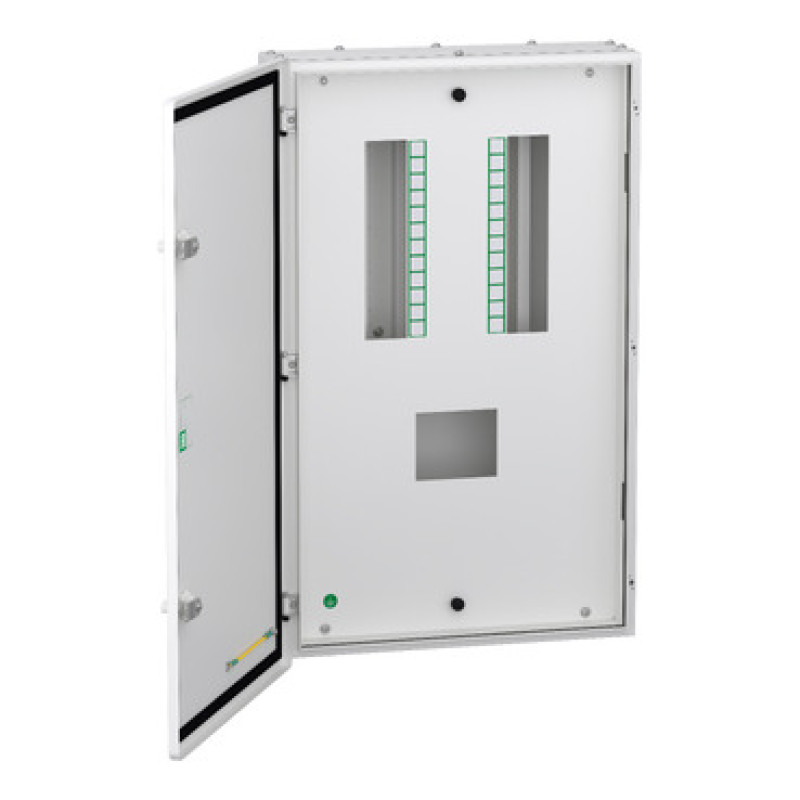

| Range | Acti9 |
|---|---|
| Product name | VTPN |
| product or component type | Consumer unit |
| Device application | Distribution |
| Colour | White (RAL 9003) |
| Provided equipment | Removable gland plates Removable centre plates Earthing bar Neutral bar Fishbone busbar Busbar link Cable shroud Neutral terminal block |
| Door type | Plain |
| enclosure mounting | Flush Surface |
|---|---|
| Protection device type | Main incomer: molded case circuit breaker (MCCB) - 3P or 4P - 160 A Outgoer: miniature circuit breaker (MCB) - 1P or 3P - 63 A |
| [Icw] rated short-time withstand current | 25 kA for 0.5 s |
| [In] rated current | 160 A |
| [Ui] rated insulation voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Total number of 18 mm modules | 24 |
| Number of ways | 8 ways |
| Enclosure/cubicle description | Double door enclosure |
| Enclosure material | Galvanized steel box Galvanized steel cable gland plate Galvanized steel mounting plate CRCA door CRCA central plate |
| Door opening side | Reversible |
| Height | 667 mm external: |
| Width | 416 mm external: |
| Depth | 139 mm external: |
| net weight | 17.5 kg |
| IP degree of protection | IP43 |
|---|---|
| IK degree of protection | IK09 |
| Standards | IS 8623-1 IS 8623-3 IEC 61439-3 |
| Product certifications | CPRI NABL |
