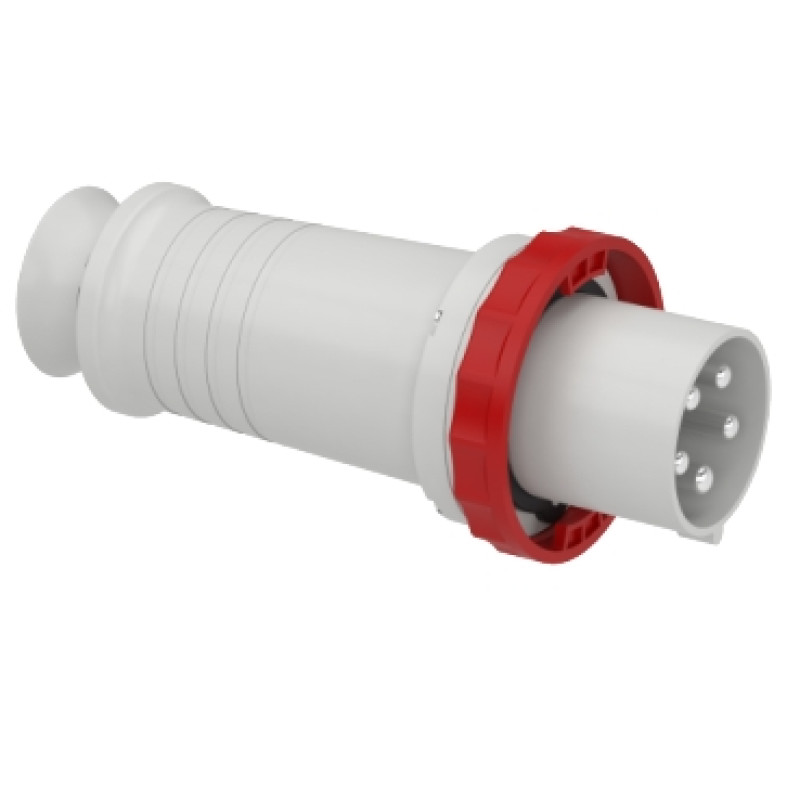

| Range | Mureva |
|---|---|
| product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 125 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| cable cross section | 16…70 mm² |
| Cable outer diameter | 26…48 mm |
| Cable entry | Cable gland |
| Thread type | Pg 48 |
| net weight | 1.46 kg |
| Height | 325 mm |
| Width | 131 mm |
| Depth | 131 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Standards | IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
