In Stock

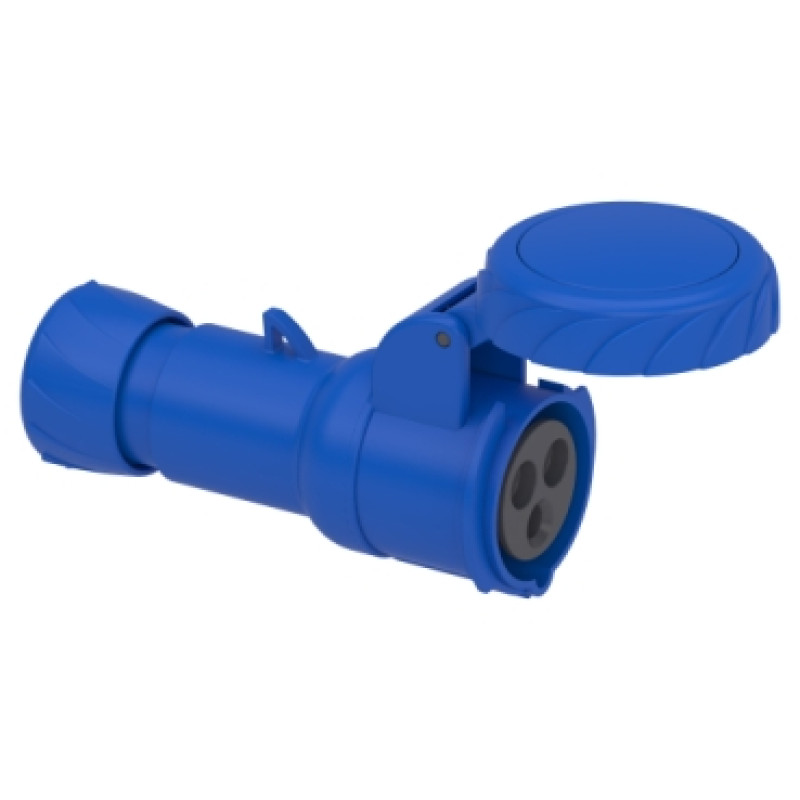

Schneider 16A - 2P + E wander socket straight - IP67 200...250 V AC (PKY16M723 )

₹ 946 - 50% Off ₹ 1892

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Pratika industrial wander socket with fast connection connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 84mm x (H) 84mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A are 1mm² to 2.5mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Color:

Brand: SCHNEIDER
Category: Switchgears (MCB's, RCCB's, DBs etc)
Sub Category: SCHNEIDER

Product Code: 444

Description
Return Policy

Main
Range	Mureva
product or component type	Wander socket
Device short name	Mureva fast
Plug, socket category	Low voltage
poles description	2P + E
Network type	AC
Outlet standard	Industrial

Complementary
Plug, socket, control station shape	Straight
[In] rated current	16 A
[Ue] rated operational voltage	200...250 V
Network frequency	50/60 Hz
ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: brass
Connections - terminals	Fast connection
cable cross section	1…2.5 mm²
Cable outer diameter	8…15 mm
Cable entry	Cable gland
Thread type	Pg 21
net weight	0.198 kg
Height	84 mm
Width	84 mm
Depth	142 mm
Colour	Grey (RAL 7035)
Voltage colour	Blue

Environment
Standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP67 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-1
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
