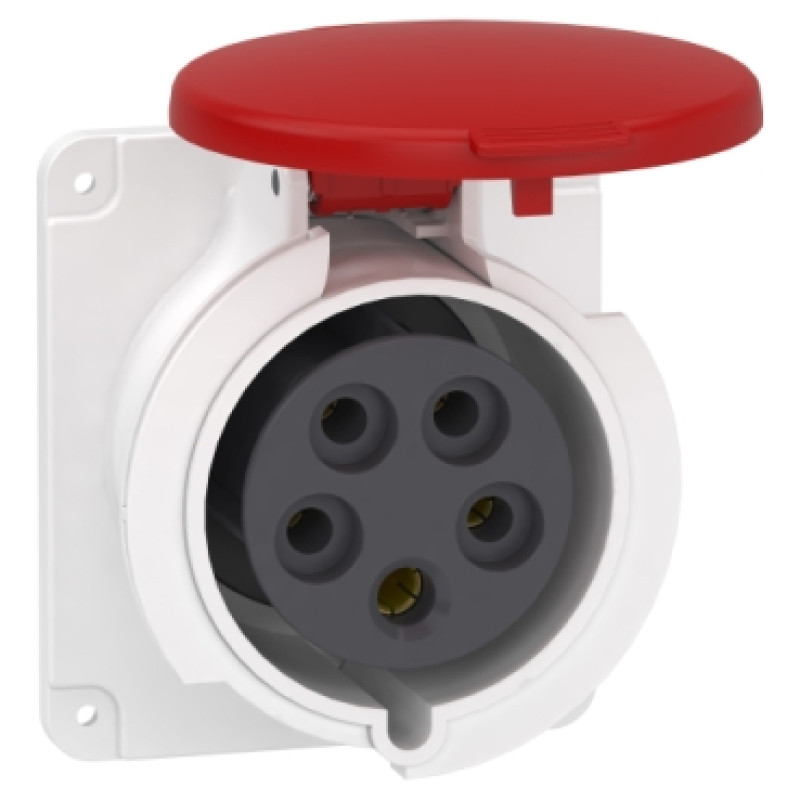

Schneider 32A - 3P + N + E socket screw straight - IP44 380...415 V AC Panel (PKF32G435)

₹ 729 - 50% Off ₹ 1458

Inclusive of all taxes

Product will be deliver within 3-4 days.

This Pratika industrial socket with captive screws connection is straight panel mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 98mm x (H) 100mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Color:

Brand: SCHNEIDER
Category: Switchgears (MCB's, RCCB's, DBs etc)
Sub Category: SCHNEIDER

Product Code: 479

Description
Return Policy

Main
Range	Mureva
product or component type	Socket
Device short name	Mureva socket
Plug, socket category	Low voltage
poles description	3P + N + E
Network type	AC
Outlet standard	Industrial

Complementary
mounting mode	Panel-mounted
Plug, socket, control station shape	Straight
[In] rated current	32 A
[Ue] rated operational voltage	380...415 V
Network frequency	50/60 Hz
ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: brass
Connections - terminals	Captive screws
cable cross section	2.5…10 mm²
net weight	0.273 kg
Base dimension	90 x 100 mm
Height	100 mm
Width	98 mm
Depth	128 mm
Colour	Grey (RAL 7035)
Voltage colour	Red

Environment
Standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-1
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s )
