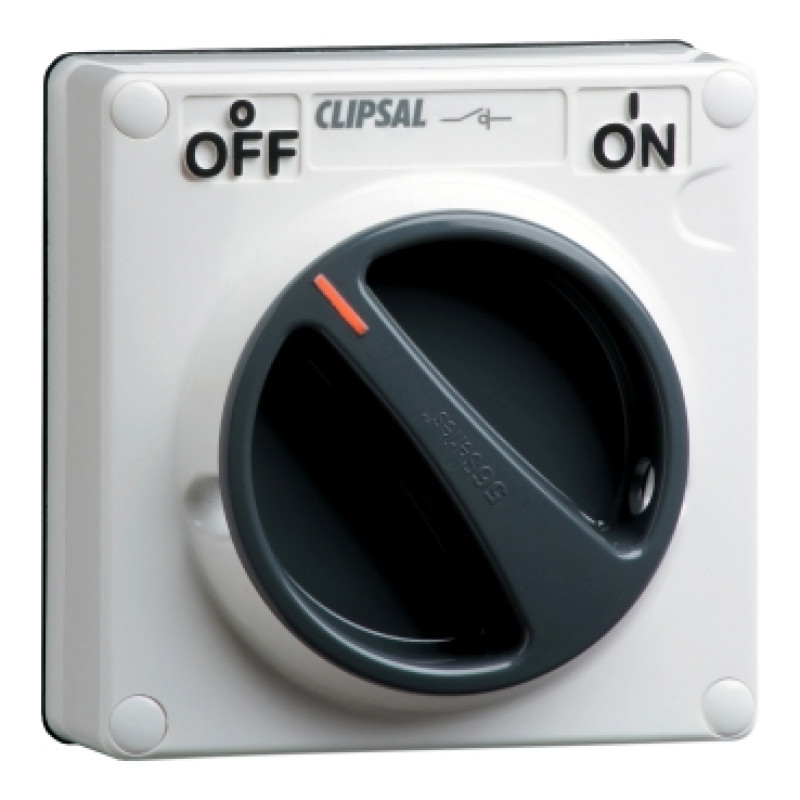

| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| product or component type | Switch |
| Assembly Type | Basic element with full cover plate |
| Device application | Control |
| handle colour | Grey |
| Suitability for isolation | Yes |
| Colour | Cover: grey |
| poles description | 3P |
|---|---|
| [Icm] rated short-circuit making capacity | 2.1 kA |
| Control type | Rotary knob |
| Number of poles | 3 |
| Installation Type | Surface |
| Material | PC (polycarbonate) |
| Tightening torque | 0.8 N.m |
| Local signalling | Without |
| [Ue] rated operational voltage | 500 V AC 50 Hz |
| Rated current | 50 A |
| marking | ON-OFF |
| marking location | Marking on surface |
| Breaking capacity | 50 kA |
| targeted country | Australia |
| Height | 107 mm |
| Width | 101 mm |
| Depth | 69 mm |
| net weight | 0.46 kg |
| Motor M-rating AS3133 | M250 at 500 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Icw] rated short-time withstand current | 1.5 kA for 1 s |
| Switch function | 3-pole |
| Rotary handle padlocking | 2 padlocks 8 mm |
| Ambient air temperature for operation | -25…75 °C |
|---|---|
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3133 |
