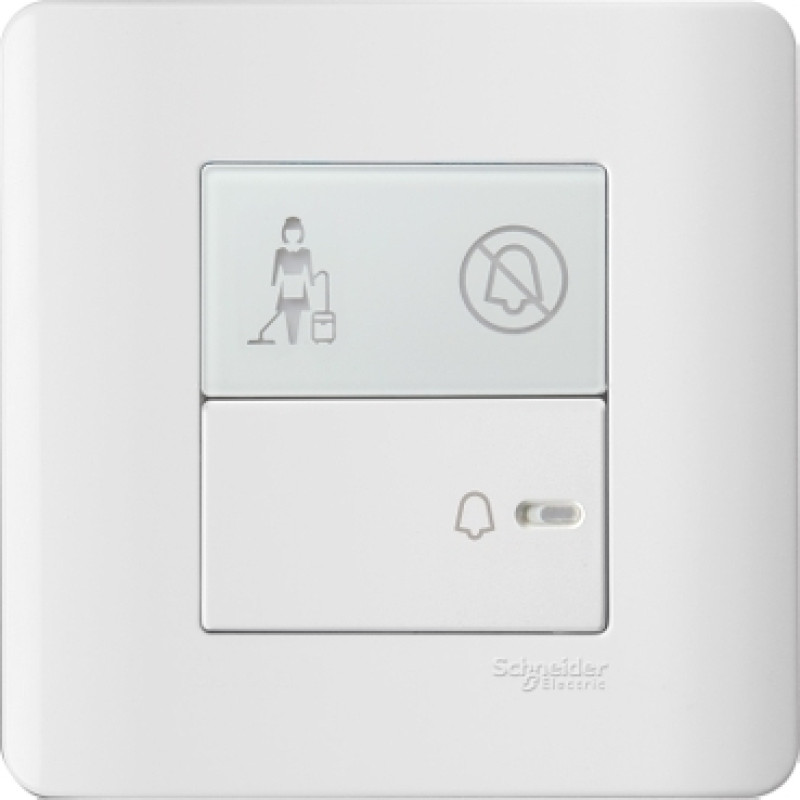

| Range | ZENcelo |
|---|---|
| product or component type | Switch |
| Device application | Bell switch |
| Load type | Inductive lamp Resistive |
| Colour tint | Opal sand |
| Cover frame colour tint | Opal sand |
| device mounting | Flush Surface |
|---|---|
| Rated current | 10 A at 250 V AC 50/60 Hz |
| Local signalling | Please clean up: indicator light, neon (green) Do not disturb: indicator light, neon (orange) |
| Number of gangs | 1 gang |
| Material | Brass: contact Polycarbonate: base Polycarbonate: cover Polycarbonate: grid plate Polycarbonate: surround |
| Connections - terminals | Pillar terminals |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 27.72 mm |
| Ambient air temperature for operation | -5…35 °C |
|---|---|
| Relative humidity | 0…95 % |
| Environmental characteristic | No UV resistant |
| Operating altitude | 2000 m |
| Standards | BS EN 60669-1 GB 16915.1 IEC 60669-1 MS IEC 60669-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.7 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 119.63 g |
